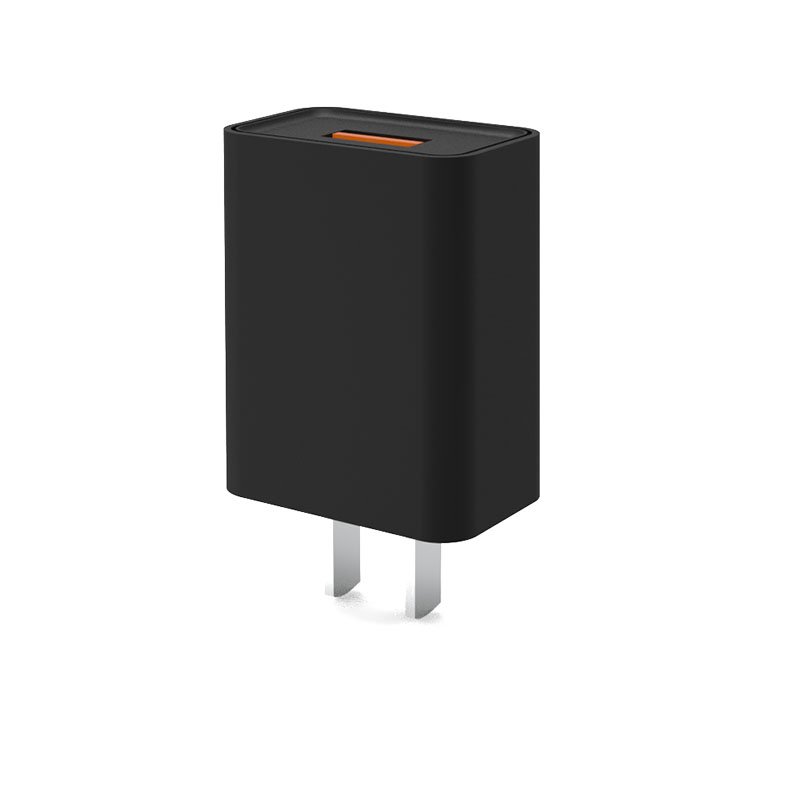

The functional requirement of D505 USB adapter

5Vusb charger is very common in our daily life .  it is widely used in electronics field like phone ,power bank , earphone ,watch and household appliances. so there is a big demand of it especial in 5V1A and 5V2A . of course 5A2.4A is also popular with apple devices,  there are some technical information about D505 information . if you want to know 5V3A  , this D23 will be a good choice .

Technical Information:

Input characteristics: Normally The D505 USB charger is designed for countries all over the world , so it support the Width-Voltage with 100V-240V requirment , meanwhile in order to Adapt to voltage fluctuations，it eventually support the voltage range with 90-264V so that all over the world countries can use it
Input Frequency: there are many countries all over the world , but there are only two frequency 50/60Hz , D505 also support both frequency , what’s more in order to adapt to frequency fluctuations, it support 47-63Hz .
Input Current: 0.3Amps max at any voltage and reted .
Inrush Current: when suddenly open the power in a special temperature , the current will be very high that maybe damage the components ， the current will be up to 30A to 50Athe D5o5 charger is 30 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.
AC leakage Crrrent :when input voltage in 240V ， max leakage 0.25 MA

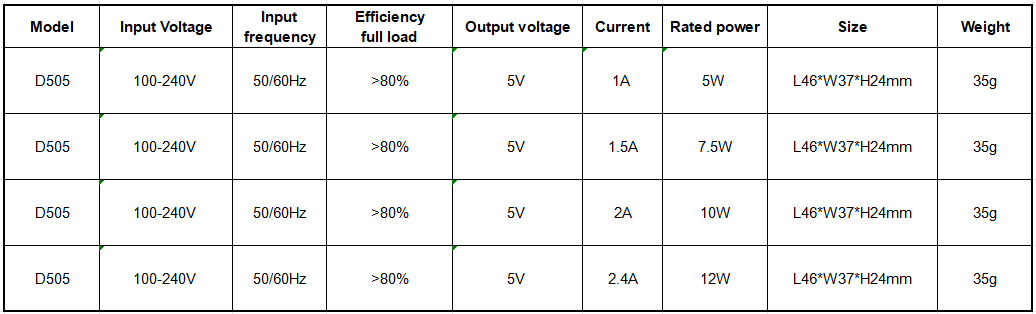

The power range :

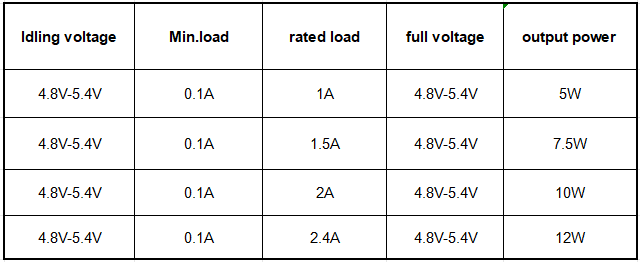

Output characteristic：

When the ac input voltage 100 v to 240 v, rated load turn when the light, the output voltage fluctuation is less than ±5%

Ripple and Noise:
Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,cros， the Ripple is 150MV p-p max
Turn on delay time: 3S
Rise time: 80mS Max.at 115Vac input and output Max load.
Fall Time:45mS Max. at 115Vac input and output Max load.
Hold up time:5 mS Min.at 115Vac input and output Max.Load.

Efficiency:
VI Min. at 115Vac input and output Max.Load. and VI Min. at 230Vac input and output Max.Load.

PROTECTION FUNCTION: it support short circuit protection , over current protection , over voltage protection , over temperature protection,

Environment requirement：

Dropping Packed:1.0M for wallmount type and 800mm for desktop type as above described。The horizontal surface consists of hardwood at least 13mm thick, mounted on two layers of plywood each 19mm to 20mm thick,all supported on a concrete or equivalent non-resilient floor.

SAFETY AND EMI REQUIREMENT:

UL 62368-1:2019/CSA C22.2#62368-1:2019

DIELECTRIC STRENGTH Hi-Pot：

Primary to secondary:3000VaC/5mA/3S for type test.

Iusulation resistance:

Primary to secondary:10MΩ min at 500V DC.

EMI STANDARD：

<1>47 CFR FCC part15 Subpart B /ANSI C63.6-2014

<2>.EN55032：2015

<3>EN55024：2010

<4>EN61000-3-2：2014

<5>EN61000-3-3：2013

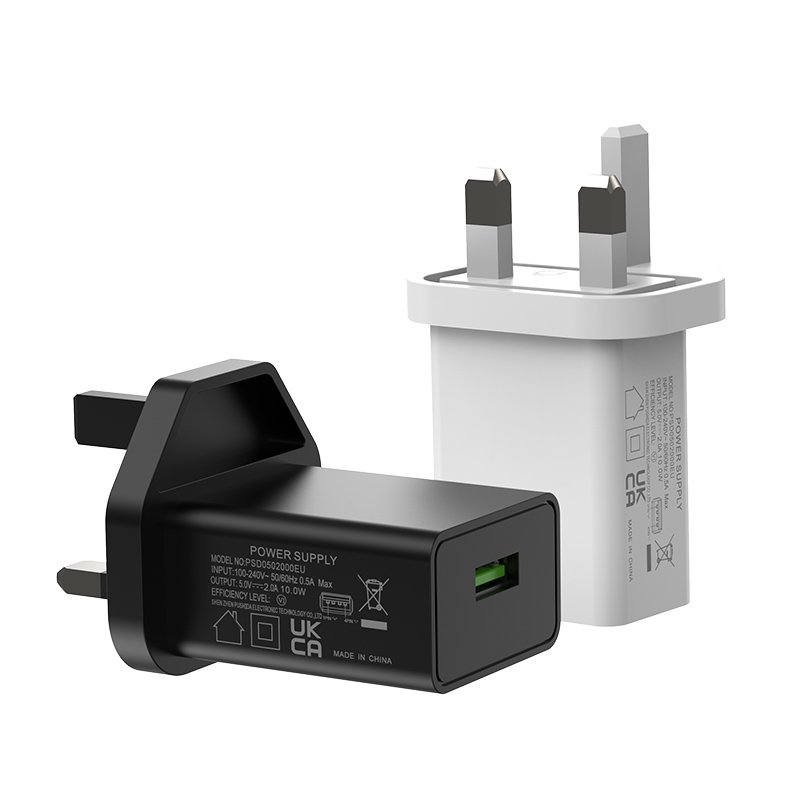

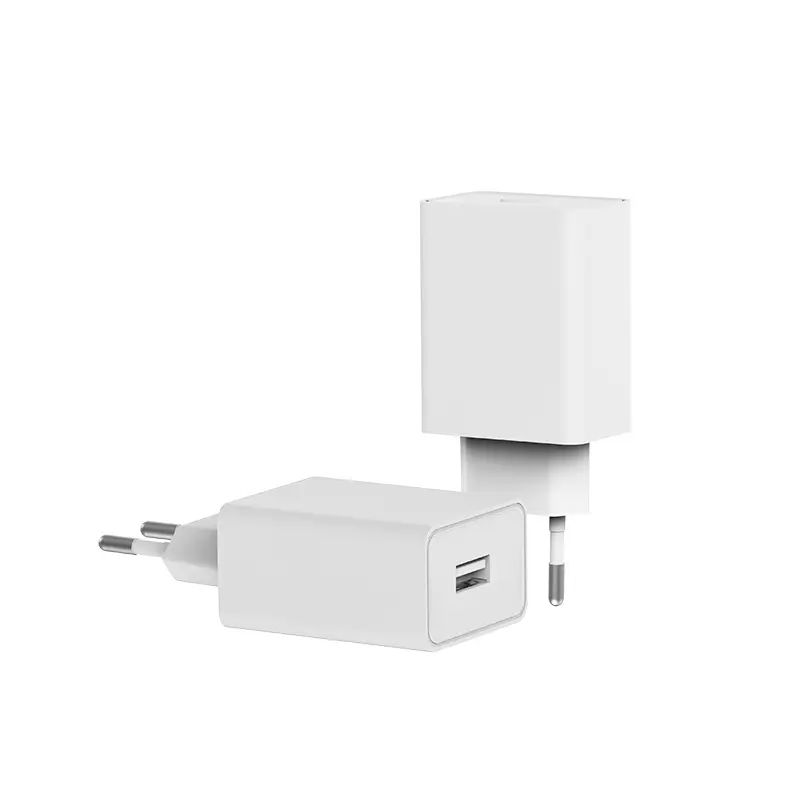

EU Type

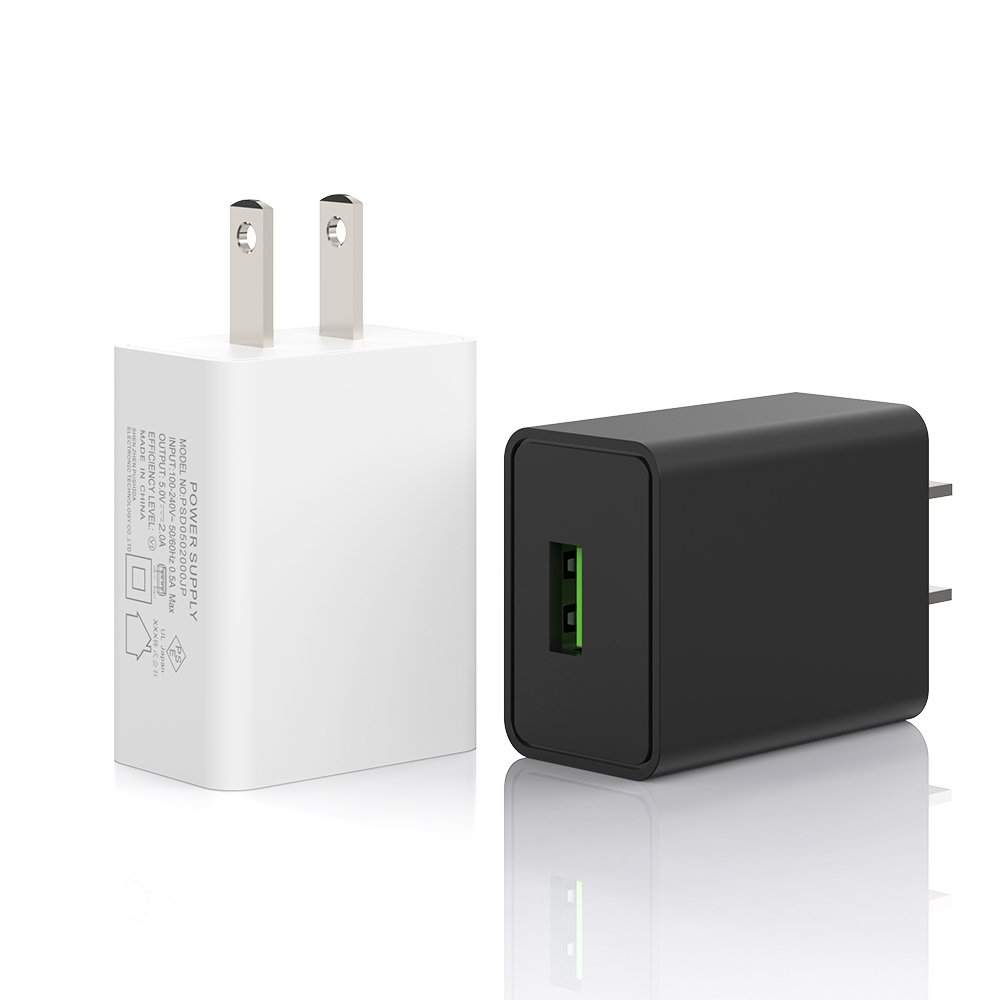

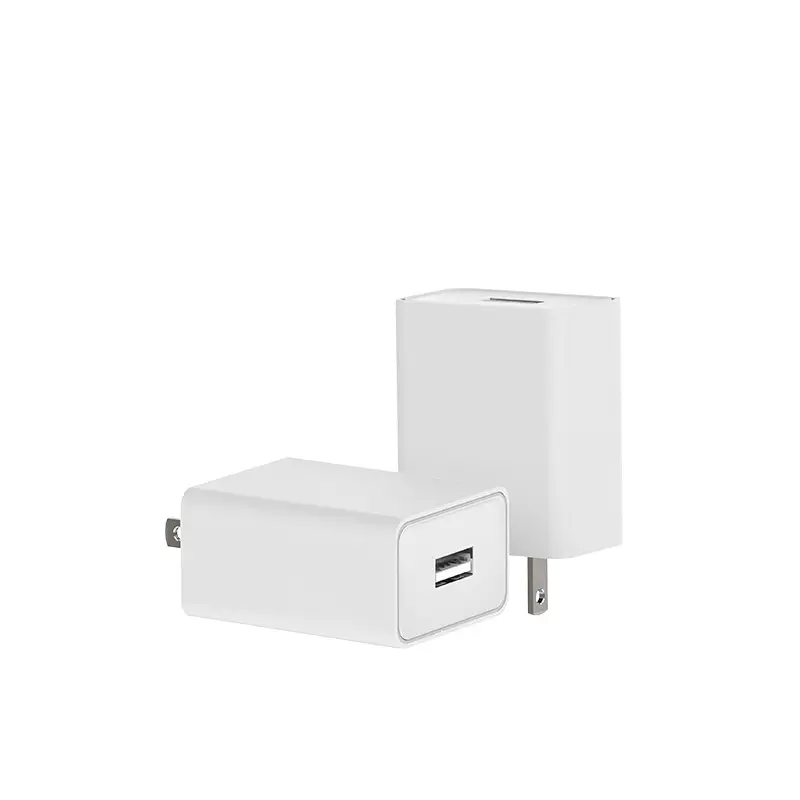

US type

PACKING:   Default packing .  can customize accroeding to your requirement

Packaging

Outside box:L475*W295*L275mm

Slab:L460*L280*T3mm

PE Bag：L220*W120*T0.03mm

Quantity:500PCS/CTN
