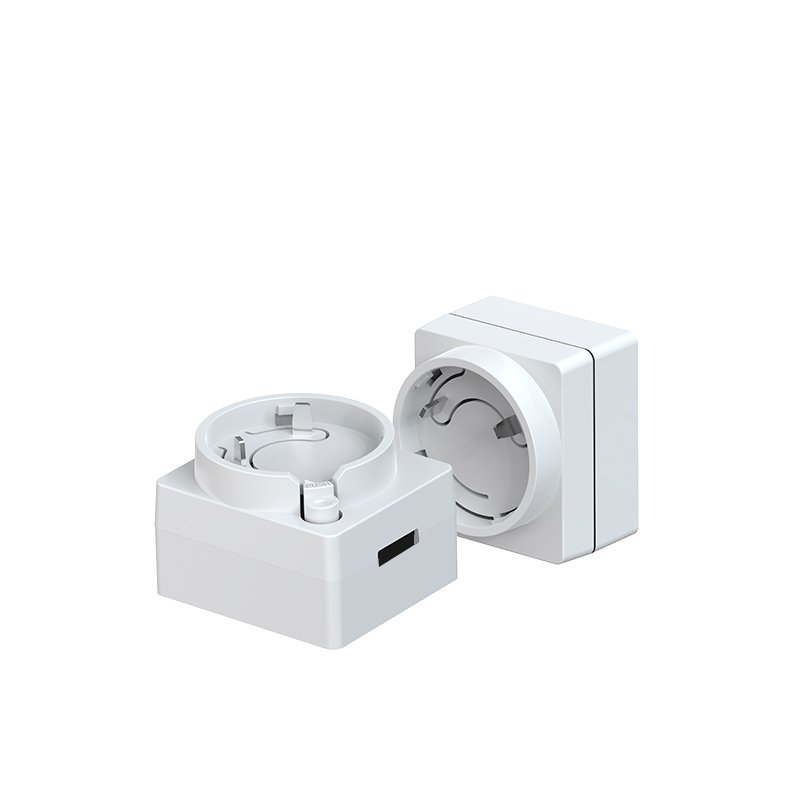

B23 5-18W EU US UK Interchangeable USB Charger
- Product Name:B23
- Product Size: L46.5*W41.5*H35mm;
- Type:Universal Adapter
- Usage:Mobile phone ,Small household appliances
- Material:PC Fireproof Material, ABS
- Protection:Short circuit test，Over current Protection，Over Voltage Protection, Overshoot
- Input voltage and current:100-240V 50-60HZ
- Output:5V 1A, 5V2A ,5V3A ,9V2A , 12V1.5A ,24V0.75A
- Certificate:ETL,FCC,CE,UKCA,DOE,ERP,ROHS,PSE
- MOQ:1000PCS
Good Service
Customizable
High Quality and Durable
Professional Service
| Item | parameter | value |
|---|---|---|
| Input | Input Voltage | 90-264V |
| Input Frequency | 50/60Hz | |
| Input Current | 0.55Amps | |
| Inush Current | 30A max | |
| output | Output Voltage Range | 3-32V |
| Output current Range | 0.1-3.1A | |
| Output Power Range | 5-18W | |
| Ripple and Noise | 100mV Max | |
| Line Regulation | ±5% | |
| General SPEC | Efficiency standard | VI |
| Leakage Current | ≤0.25mA | |
| MTBF | 50000H | |
| Short circuit Protection | ≤0.5W | |
| OverVoltage Protection | 120% Min | |
| Overcurrent protection | 150% Min | |
| ENVIRONMENTAL REQUIREMET | Operating Temperature | -10℃ to 40℃,Full load, Normal operation. |
| Storage Temperature | -20℃ to 80℃ | |
| Humidity | 5~95%RH(non-condensing) | |
| SAFETIES/ APPROVALS | Safety standard | accord with EN62368 |
| EMI Standard | <1>.EN55022 <2>EN55032<3>EN61000 | |
| Certificate | CE FCC ROHS,PSE, UKCA ,ETL |
Dropping Packed:
1000mm for wallmount type and 800mm for desktop type as above described; The horizontal surface consists of hardwood at least 13mm thick, mounted on two layers of plywood each 19mm to 20mm thick,all supported on a concrete or equivalent non-resilient floor.
PROTECTION FUNCTION:
Short circuit test:
The power supply will be auto recovered when short circuit faults remove.
Over current Protection:
The power supply will be auto recovered when over current 2A Max faults remove
Over Voltage Protection:
The power supply will auto recovered when faults remove 150%~180%
Size：
PACKING: Default packing . can customize accroeding to your requirement
Packaging
Outside box:L475*W295*L275mm
Slab:L460*L280*T3mm
PE Bag：L150*W100*T0.03mm
Quantity:150PCS/CTN
