A5D 18W -24W Horizontal Power Wall Adapter

 The functional requirement of A5D power adapter

The A5D power Wall adapter is definitely a very good product , what’s more , it is a upgraded product based on A5 power adapter , the A5 could reach 18W-14W output ,  but A5D can reach 36W power output ,  it support US Plug, EU plug , UK plug  for now . if you want other plug , we can open mold free for you ,  this power is famous for this samll volume and good quality , its’ output is very steady.

Input Information:

Input characteristics: The A5D power adapter  is designed for countries all over the world , so it support the Width-Voltage with 100V-240V requirment , meanwhile in order to Adapt to voltage fluctuations，it eventually support the voltage range with 90-264V so that all over the world countries can use it

Input Frequency: there are many countries all over the world , but there are only two frequency 50/60Hz , B23X also support both frequency , what’s more in order to adapt to frequency fluctuations, it support 47-63Hz .

Input Current: 0.3Amps max at any voltage and reted .B

Inrush Current: when suddenly open the power in a special temperature , the current will be very high that maybe damage the components ， the current will be up to 30A to 50A,the A5D power adapter  is 30 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

AC leakage Crrrent :when input voltage in 240V ， max leakage 0.25 MA

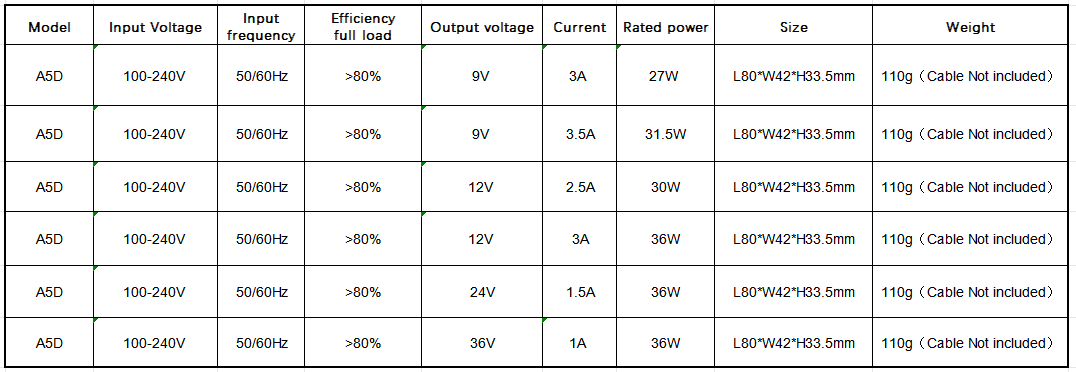

The power range :

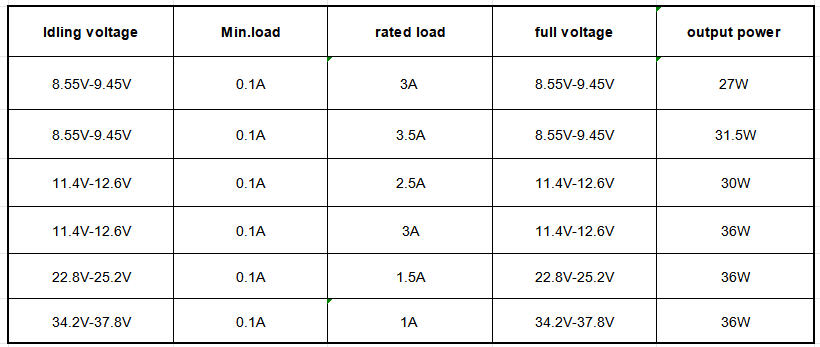

Output characteristic：

When the ac input voltage 100 v to 240 v, rated load turn when the light, the output voltage fluctuation is less than ±5%

Ripple and Noise:
Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,cros， the Ripple is 100-150MV p-p max
Turn on delay time: 3S
Rise time: 80mS Max.at 115Vac input and output Max load.
Fall Time:45mS Max. at 115Vac input and output Max load.
Hold up time:5 mS Min.at 115Vac input and output Max.Load.

Efficiency:
VI Min. at 115Vac input and output Max.Load. and  VI Min. at 230Vac input and output Max.Load.

Protection Function: it support short circuit protection , over current protection , over voltage protection , over temperature protection

DC Size：

Environment requirement：

Dropping Packed:1.0M for wallmount type and 800mm for desktop type as above described。The horizontal surface consists of hardwood at least 13mm thick, mounted on two layers of plywood each 19mm to 20mm thick,all supported on a concrete or equivalent non-resilient floor.

SAFETY AND EMI REQUIREMENT:

Safety:accord with EN62368

UL 62368-1:2019/CSA C22.2#62368-1:2019

UL 62368-1, 2nd Ed, 2014-12-01 (Audio/video, information and communication technology equipment Part 1: Safety requirements)

CAN/CSA C22.2 No. 62368-1-14, 2nd Ed-(Audio/video, information and communication technology equipment Part 1: Safety requirements)

DIELECTRIC STRENGTH Hi-Pot：

Primary to secondary:3000VaC/5mA/3S for type test.

Iusulation resistance:

Primary to secondary:10MΩ min at 500V DC.

EMI STANDARD：

<1>47 CFR FCC part15 Subpart B /ANSI C63.6-2014

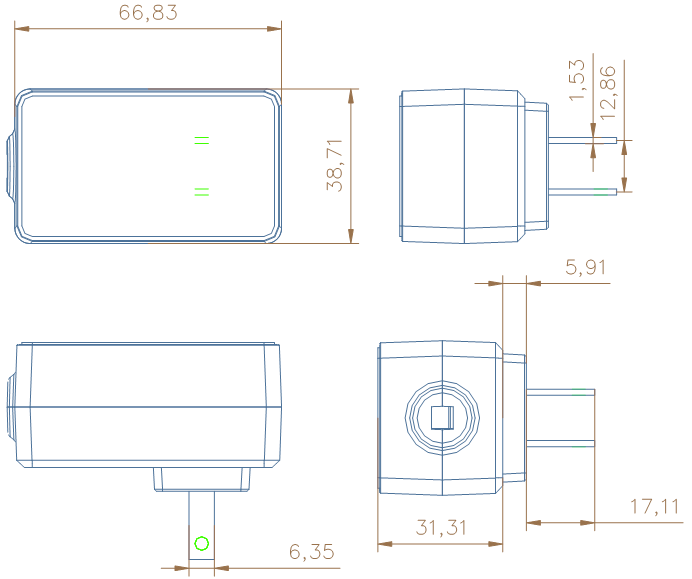

Size :

PACKING:   Default packing .  can customize accroeding to your requirement

Packaging

Outside box:L475*W295*L275mm

Slab:L460*L280*T3mm

PE Bag：L220*W120*T0.03mm

Quantity:100PCS/CTN
